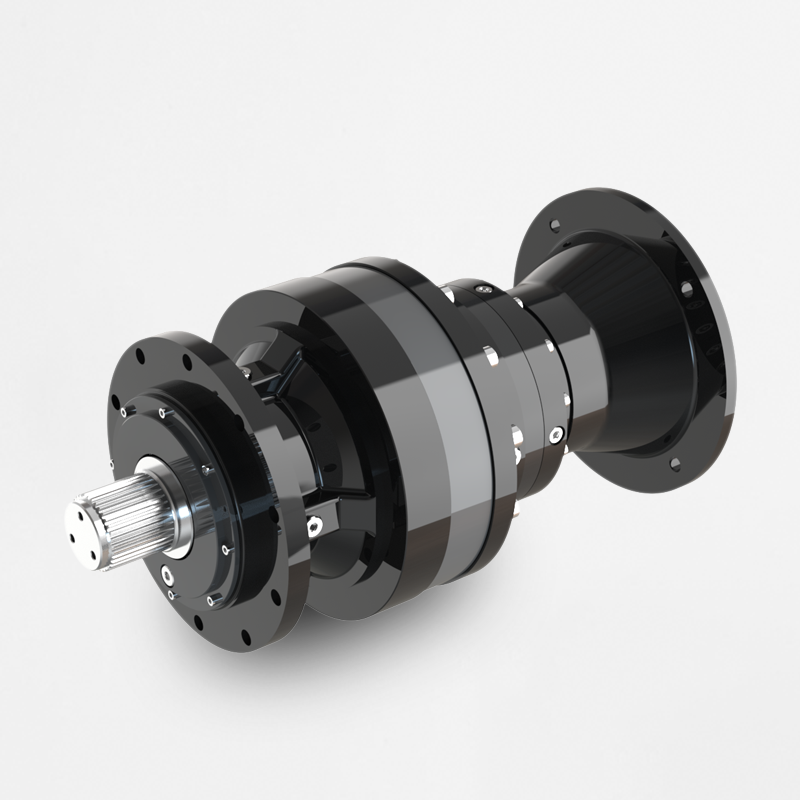

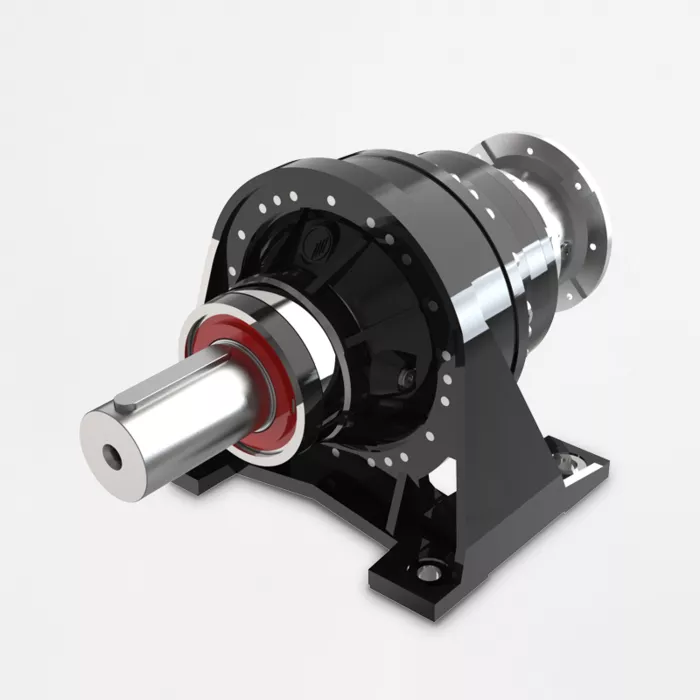

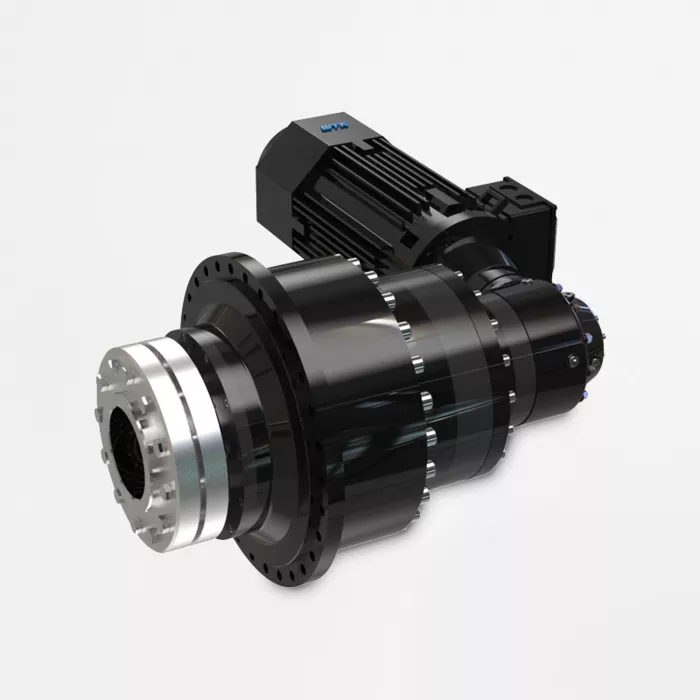

Planetary Reducer
QR code
share
17 overall sizes, 2 shapes (flange bottom and flange top)
Power range of 1,000 Nm to 1,550,000 Nm (as a standard)
Gear ratios 17 to 4,680 (as a standard)
Expanded scope of delivery, such as couplings, brakes, electric/hydraulic motors can be supplied
Type approvals of all major classification societies
Application-specific solutions
Power range of 1,000 Nm to 1,550,000 Nm (as a standard)
Gear ratios 17 to 4,680 (as a standard)
Expanded scope of delivery, such as couplings, brakes, electric/hydraulic motors can be supplied
Type approvals of all major classification societies
Application-specific solutions
DetailLiterature
Discover the strengths of our planetary gear reducers
1, 2, 3, 4 reduction stages for both coaxial and right angle units, 5 and 6 stages under request
Modular design, with multi-optional executions
Suitable to be equipped with NEMA, hydraulic & IEC motors
External gear pair made of casehardened and hardened steel; internal gear made from nitride steel
Cylindrical spur gear with ground profile and flank modification
GLEASON spiral bevel gear pairs with ground profile
Very compact size and reduced mass of gearbox
Wide range of accessories and non-standard designs
Lower backlash, enhanced stiffness and heavy duty bearing
Improved lubrication system
Wide range of hydraulic brakes
